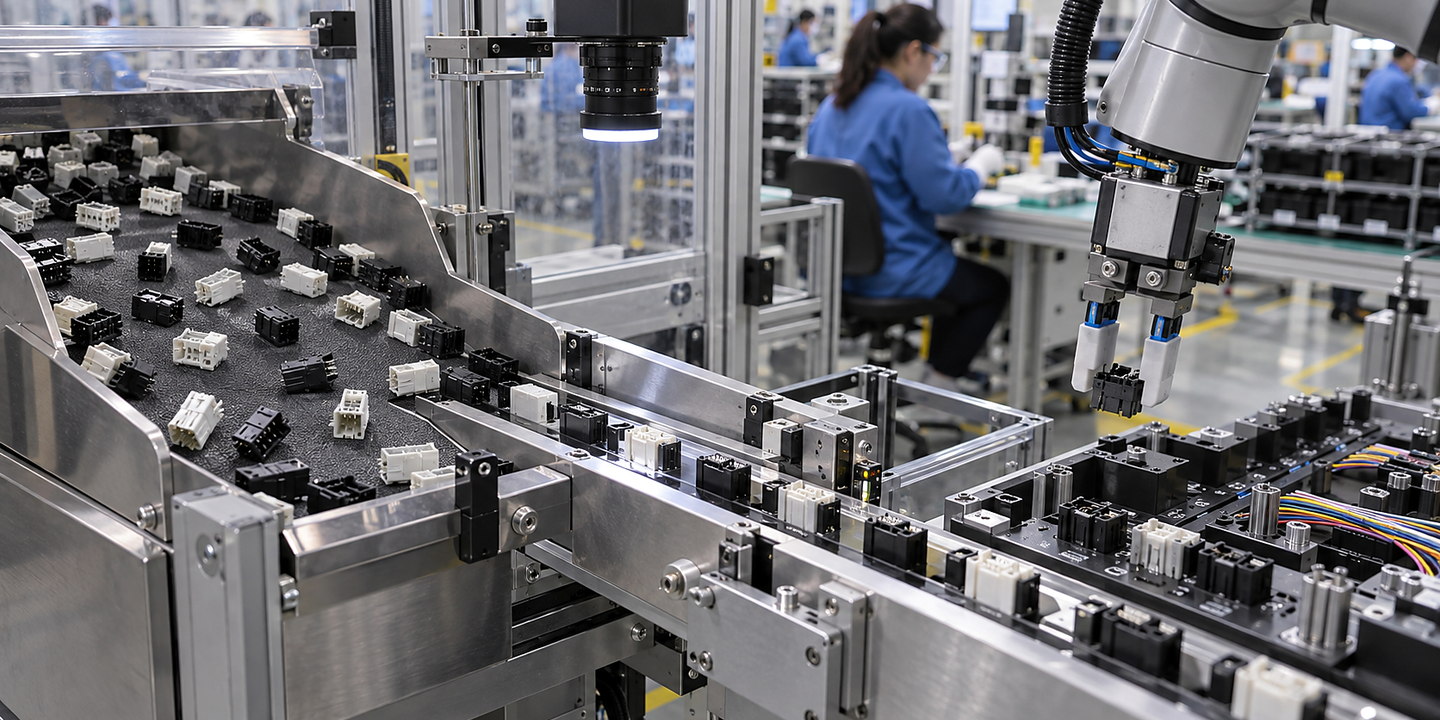

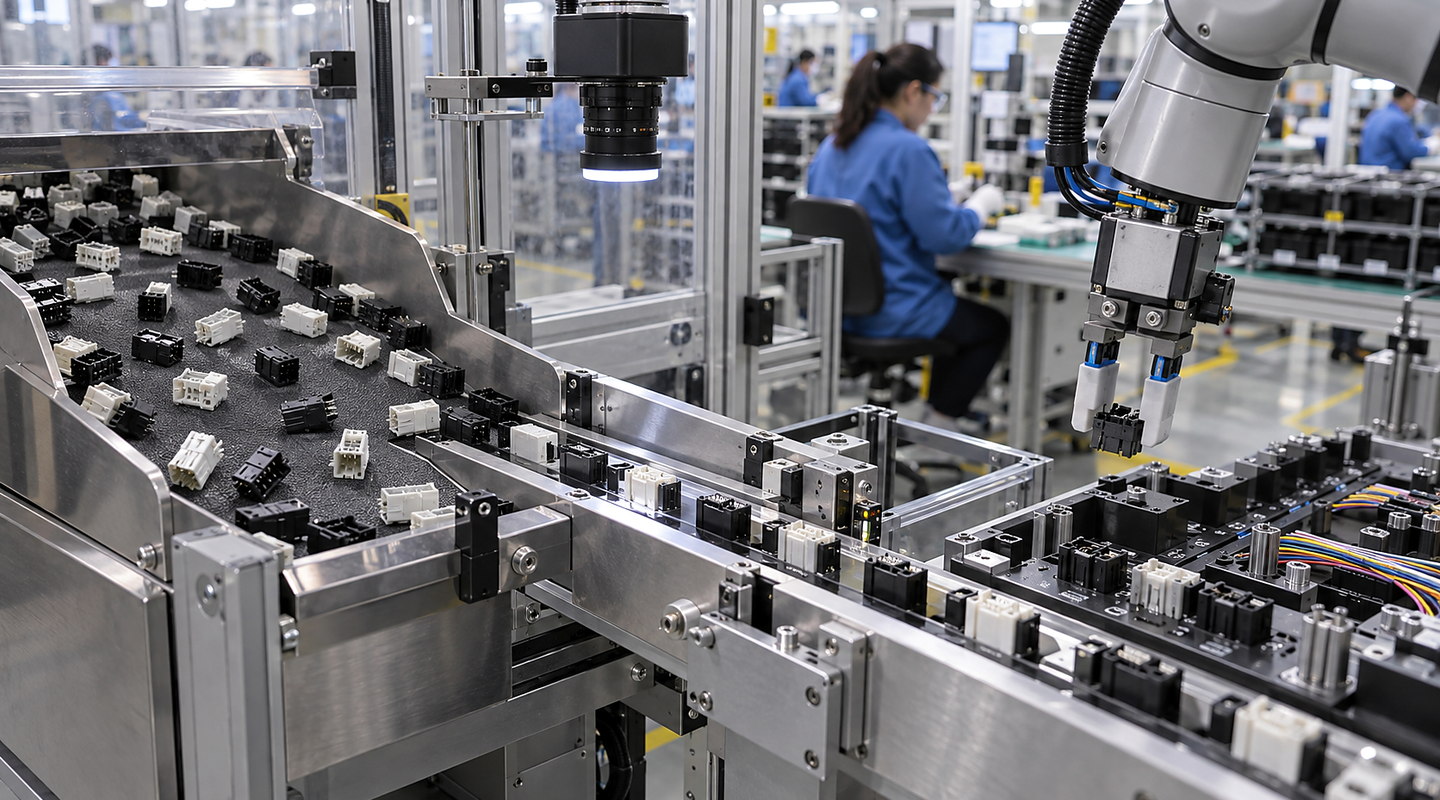

Black and white components on a feed surface beside a camera and robot gripper.
Component feeding and sortation

Electrical Contact Feeders

Plan electrical contact feeders around real component variation, bulk condition, orientation, usable delivery rate and the downstream interface. Discuss representative part trials with Sorting Solutions.

Speak directly with Sorting Solutions about electrical-contact orientation and feeding.

Quick answer

How do we feed small electrical contacts without damaging their features?

Identify contact surfaces, coatings and fine features that must remain undamaged. Provide representative bulk parts and define the required orientation at insertion or assembly. Trial separation, track travel and the final release, with checks for deformation, mixed variants and the way the station handles a missing contact.

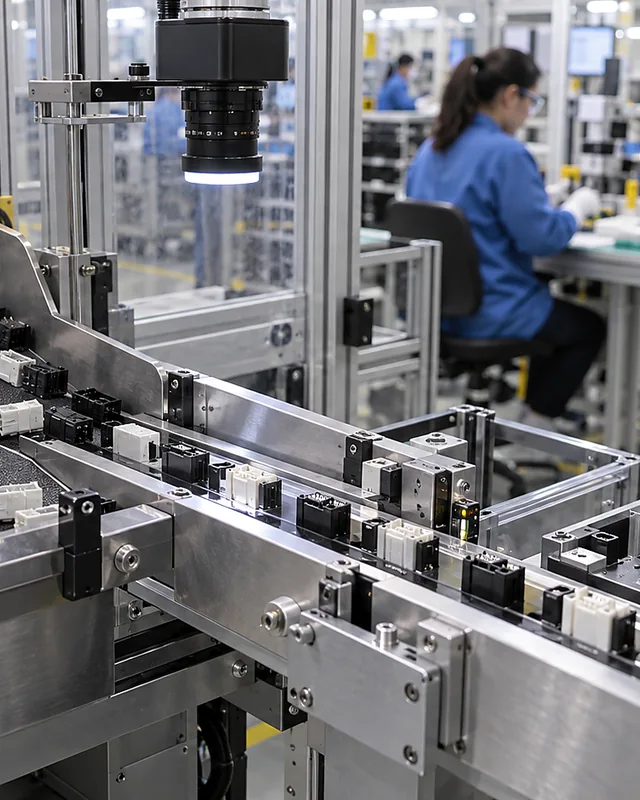

Black and white components on a feed surface beside a camera and robot gripper.

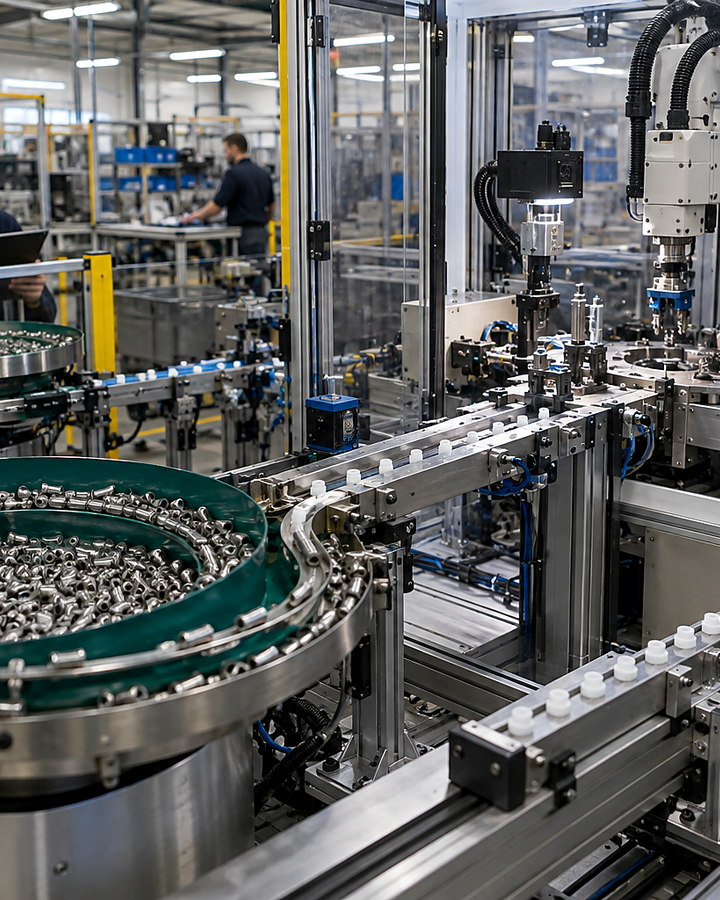

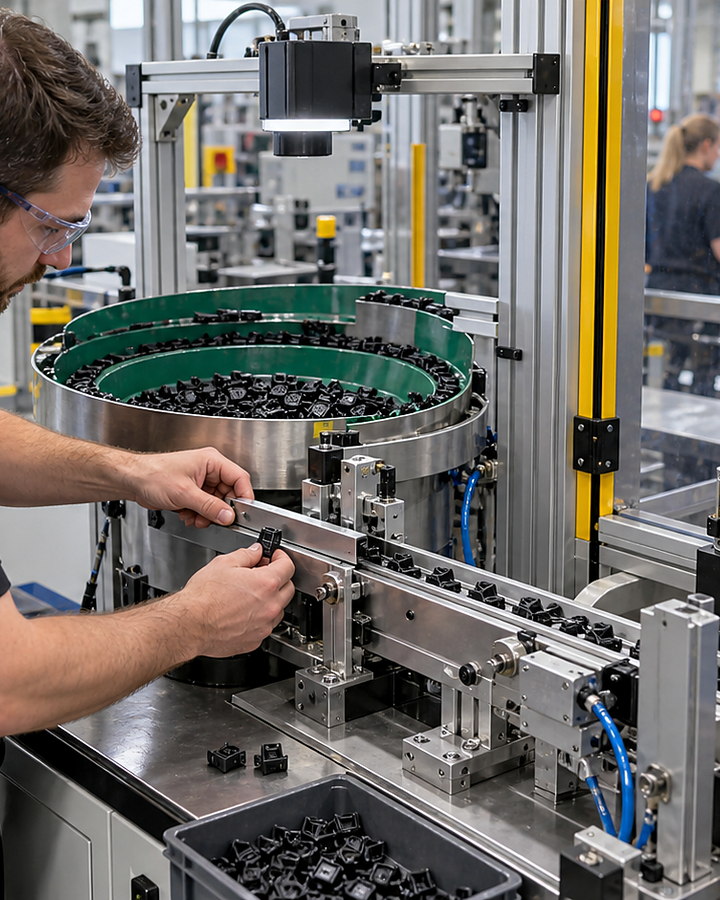

Person holding a small component beside a bowl feeder and feed track.
Application decisions

Protect the contact while delivering the correct insertion pose

Electrical contacts may have a small feature that determines their orientation and a different surface that must remain untouched. Both belong in the feeder brief before the handling principle is chosen.

Decision 1

Identify functional and handling surfaces

Mark the mating face, spring feature, locking lance and plated areas on the drawing. Distinguish surfaces that can support or guide the part from those that should not be rubbed or loaded. Include acceptable cosmetic marks and unacceptable deformation. The trial review should inspect parts after feeding as well as measuring how many arrive at the outlet.

Decision 2

Use the delivery form in the assessment

Confirm whether contacts arrive loose, in trays or on a carrier strip. A loose-parts feeder should not be assumed suitable for a component intended to remain strip-fed until insertion. Supply representative packaging and bulk condition, including oil or residual handling material where applicable. Preserve the identity of sample batches so different contact variants are not accidentally combined.

Decision 3

Separate nested and interlocked contacts

Fine features can hook together, while hollow or folded forms can nest. Observe the actual bulk sample before selecting tooling or agitation. Include pairs of interlocked parts in the trial challenge set. Excessive recirculation may hide damage or starve the assembly station, so record interventions and part condition during a sustained run.

Decision 4

Define the insertion reference

Describe leading end, upper face and rotation at the receiving nest. Use the assembly-tool datum rather than a verbal instruction such as pins forward. Decide how an inverted contact or a visually similar wrong variant is distinguished. Some features may need controlled optical presentation or a separate check rather than relying only on mechanical selection.

Decision 5

Control one contact at the transfer point

Agree the release position, permitted movement and part-present confirmation with the assembly integrator. Review how the escapement supports a delicate part without deforming it. Challenge absent and double parts and a downstream machine that pauses unexpectedly. A feeder output figure is useful only when the contact is actually available for the insertion operation.

Decision 6

Set a damage-aware acceptance test

Compare incoming and fed samples using the agreed inspection method. Record correct orientation, damaged features, mixed variants, missed deliveries and recovery events separately. Run normal replenishment and the smallest intended component batch. Where the product requires electrical or functional testing, keep that responsibility separate from the demonstrated mechanical feeding and visible-condition checks.

Use the specification checklist to record these decisions, then send your application details for review.

Applications

Two useful starting points for electrical contact feeders

The right choice changes with component geometry and variation for electrical-contact orientation & feeding, surface, fragility and entanglement behaviour, your line layout and required results.

What happens next

Your route from an initial enquiry to a working solution

You can review decisions about escapement and downstream pick interface and jam, damage and recovery acceptance checks at each stage.

  1. 01

    Review Representative Production Components

    Share representative production components and the downstream interface, including the normal range for component geometry and variation for electrical-contact orientation & feeding and the difficult surface, fragility and entanglement behaviour cases.

  2. 02

    Trial Separation, Orientation and Presentation

    Compare suitable methods and use focused trials to show how each option performs against bulk condition and replenishment method.

  3. 03

    Develop Tooling, Controls and the Downstream Interface

    Connect the equipment to your line, services and controls while resolving required orientation and delivery rate for day-to-day operation.

  4. 04

    Challenge Delivery, Replenishment, Jams and Recovery

    Confirm escapement and downstream pick interface, then complete and record jam, damage and recovery acceptance checks before your operating team takes over.

Important limits

Know what needs a separate check

Your final solution for electrical-contact orientation and feeding must reflect the law, current standards and site-specific risks that apply to your installation.
